Automatic Winter Melon Peeling Machine

Usage：The fruit peeling machine is mainly suitable for peeling winter melon, pumpkin, cantaloupe, etc.

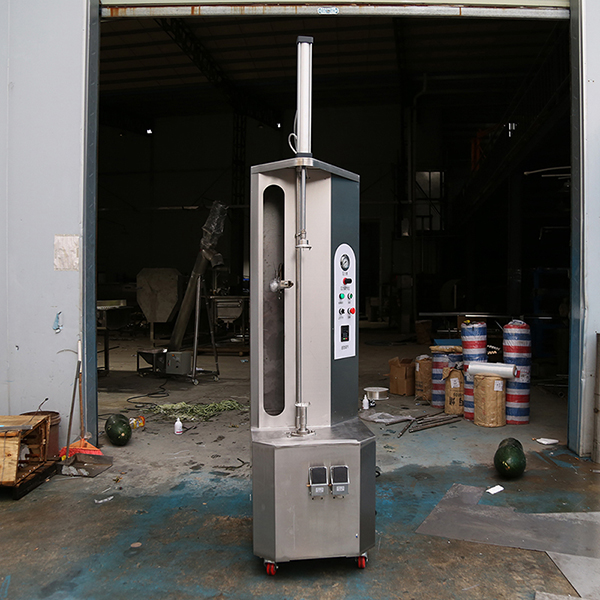

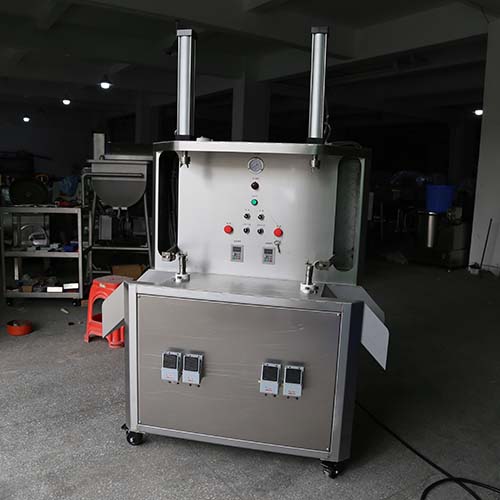

This machine is designed with single head and double head according to different customer needs.

Usage process:

1. No load test machine: Confirm that the power supply is 380V (customized for special voltages), connect the power supply, turn on the start switch of the winter melon peeler, and let the machine idle for 1-2 minutes. Observe whether the blade group is idling carefully and listen for any abnormal noise or vibration, and confirm whether the bottom rotating tray is running smoothly.

2. Rotating peeling: Place pumpkin, winter melon, cantaloupe and other long shaped melon shaped ingredients vertically on the bottom tray, and operate the air pump pressure plate to insert the fixing device into the top of the ingredients for fixation. After fixation, the switch can be activated. After startup, the bottom tray will drive the ingredients to rotate, and the knife group will adaptively perform peeling operations from bottom to top/from top to bottom according to the size of the ingredients, without damaging the fruit pulp.

3. Automatic discharge: After the ingredient peeling operation is completed, the knife disc will automatically return to its original position. The operator only needs to press and hold the air pump pressure plate switch of the machine to return the fixture to its original position and directly take out the ingredients for the next processing step. The knife holder is specially designed to allow the peeled melon peel to be directed and neatly discharged to the designated position, making it easy to collect and clean in a centralized manner. It is easy to disassemble and wash, and meets the hygiene requirements of food processing.

Equipment features:

The fully automatic winter melon peeler has a peeling rate of up to 95%; The cutting speed can be adjusted according to the material shape, and the blade group can cycle up and down to remove the skin. The blade group automatically adapts to the size of the material skin, and the hourly output can reach 50-80 pieces; The special design of the knife holder allows for directional discharge of melon peels, making it easy to collect and clean. The entire machine is made of stainless steel material, making it easy to disassemble and clean, with simple operation and easy cleaning.

Feature:

Material: The entire machine is made of high-quality 304 stainless steel. It has strong corrosion resistance and rust prevention ability, fully complies with international food hygiene and safety standards, is durable and easy to rinse.

Advanced peeling technology: using a single blade to cycle cutting from top to bottom or from bottom to top, the peeling speed can be manually adjusted according to the material shape, and the peeling rate can reach over 95%. The special design of the knife holder allows for directional discharge of melon peels, making it easy to collect and clean. Significantly reduce material loss.

Diverse specifications: The multifunctional pumpkin peeler can perform fixed rotation peeling according to different materials, such as long winter melons, long pumpkins, long watermelons, and other shaped fruits. Diversified specifications can meet the needs of different food ingredients.

Security certification: The device has passed CE certification and is popular in Europe, Europe, America, Asia, and Southeast Asia.

Universality and durability

Material quality: The 304 stainless steel structure is corrosion-resistant, heat-resistant, easy to clean, and meets food grade hygiene standards, ensuring long-term use without rusting or contaminating ingredients.

Multiple material compatibility: One machine can be used for peeling operations on multiple materials. Suitable for large and medium-sized melons such as winter melon, pumpkin, papaya, cantaloupe, watermelon, etc., with adjustable peeling speed, compatible with melons and fruits with a diameter of about 80-300mm and a height of less than 800mm.

Modular design: The machine adopts a detachable design for easy disassembly, washing, and deep cleaning. The peeling speed is adjustable, and the tool peeling speed can be adjusted according to different fruit shapes to ensure good peeling effect; The knife group circulates up and down for peeling, and the melon peel is discharged in a directional manner. The bottom is equipped with a moving wheel for flexible movement.

Simplify the operational process

Connect the power and gas source, reset the standby machine, fix the materials with one click, start the switch with one click, and press the safety emergency stop button. One person can operate one machine, and the knife group automatically cycles up and down for peeling. After completion, the material is taken out, and the melon peel is discharged in a directional manner during the peeling operation, without the need for professional training or complex processes, directly realizing the operation of starting up and processing.

Suitable for various processing industries

Restaurant chain stores and large canteens: can efficiently and standardly process ingredients such as pumpkin and winter melon for making pumpkin soup, stews, etc., improving the efficiency of meal preparation and the stability of dish quality.

Vegetable processing plants and food processing plants: In professional vegetable processing plants, standardized peeling of pumpkins and winter melons is an important step on the assembly line. Significantly improve the overall production efficiency and hygiene standards of the factory.

Food and beverage processing plant: suitable for the pre-processing of various canned foods, beverages, jams, frozen fruits and vegetables, and other food processing plants.

Specialized Scenarios

Deep processing of snack foods and dried fruits: mainly used in processing plants that require a large amount of pumpkin puree or pumpkin raw materials for dried fruits, dried fruits, and snack foods. Standardized peeling is used for subsequent processing to ensure the purity of the raw materials.

Beverages and beverage processing: mainly used to provide standardized peeled pumpkin and winter melon raw materials for the production line of winter melon water, pumpkin juice, pumpkin soup and other products, meeting the stability requirements of beverages, tea shops and other places for ingredients.

Frequently Asked Questions

How to solve the problem of poor peeling effect of winter melon peeler?

The deterioration of the peeling effect is mostly due to blade wear or the embedding of fruit pulp inside the blade. Wear out blades should be replaced or the angle of the cutting tool adjusted, and tools such as toothpicks should be used to remove any remaining fruit pulp inside the blades.

How to solve the problem of the loud running sound of the winter melon peeling machine?

Possible reasons may be loose device components or lack of oil in bearings. Loose parts should be checked and tightened, and the lubricating oil condition of each bearing should be checked and added in a timely manner.

Maintenance method:

Daily maintenance: After daily use, wipe the machine body and tray with a damp cloth, remove the melon peel residue from the knife holder and machine table.

Monthly maintenance:

Lubricating oil must be regularly added to all moving parts and rotating joints of mechanical components, and lubrication must be maintained.

Check the pressure gauge, the normal value is about 0.8 kg/cm ² (0.08 MPa). Regularly drain the accumulated water in the air filter and clean the filter element. Check if there is any air leakage at the joints of each trachea. If there are bubbles, replace the sealing ring or tighten the joints.

It is recommended to check the sharpness of the blade every two weeks. If there are continuous white spots or increased resistance during peeling, it indicates that the blade has become dull. Disassemble and polish with oilstone in a timely manner, and replace the blade if it is severely worn.

Safety Reminder

Do not open the cover or reach inside the machine during operation.

If there is a jamming, power off first and then handle it.
