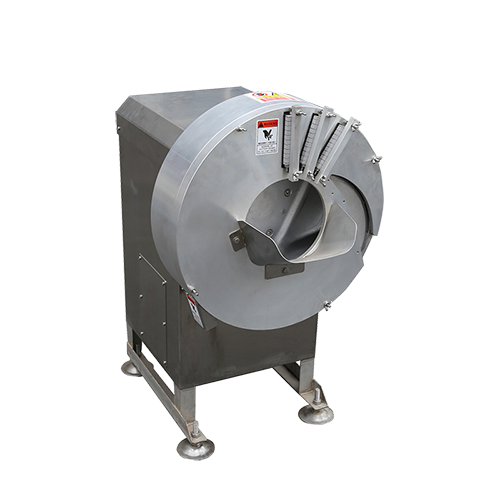

Ginger Shredded Ginger Slice Machine

Usage: Used for shredding or slicing ginger, garlic, and sweet potato mushrooms.

Features: The surface of the cut material is smooth and neat; The cutting thickness and width are uniform.

Usage process:

1. Empty load test machine: Before use, place the machine on a dry, ventilated, and level surface to ensure stability and reliability. Check if all fasteners are loose, if the power cord is damaged, and if there are any foreign objects in the hopper. After turning on the power and starting, observe from the feeding port that the cutting blade should rotate counterclockwise, otherwise adjust the power cord. No load test run for 1-2 minutes, confirm that there are no abnormal noises, friction sounds, and smooth operation before feeding.

2. Uniform feeding: After the no-load test is normal, clean and remove the inedible parts of the fruits and vegetables and put them into the feeding port. The feeding should be continuously and uniformly advanced to avoid uneven cutting or equipment jamming. Be careful not to invest too much at once to prevent material blockage from causing downtime or malfunctions. If there is a blockage, the machine must be stopped immediately for cleaning before continuing to operate.

3. Automatic discharge: After the material enters the silo, it is cut into regular shapes such as pieces and threads by a high-speed rotating blade, and automatically falls from the discharge port. Before operation, it is necessary to place a material receiving frame or connect the conveyor belt below the discharge port in advance to ensure the smooth collection of finished products. During the cutting process, the discharge should be kept unobstructed and there should be no blockage.

Equipment features:

The commercial fruit and vegetable slicer has the characteristics of high efficiency and high yield (with an hourly output of 500-800 kilograms), precise cutting (uniform thickness, smooth cutting surface), multi-purpose (with a replaceable blade for slicing or shredding), sturdy and durable (made of food grade stainless steel, easy to clean), and safe and reliable (with separate driving and cutting areas).

Feature:

Material: The vegetable slicer is made of high-quality 304 stainless steel, which has strong corrosion resistance and rust prevention ability, fully complies with international food hygiene and safety standards, is durable and easy to rinse.

Advanced centrifugal cutting technology: using the centrifugal directional cutting principle, the material rotates at high speed on the turntable and is cut with a fixed blade under the action of centrifugal force. The cut filaments and flakes are basically the same length as the cut surface of the material itself. The cutting surface is smooth and even in thickness, without damaging the fibrous tissue of fruits and vegetables. The cutting specifications can be adjusted by replacing the cutter head. The cutting quality is stable. The molding rate is extremely high, significantly reducing material loss.

Diverse specifications: The width of the material cut by the machine is a fixed value and cannot be adjusted independently. Different cutting discs can be replaced to adjust the cutting size. Customized cutting wire size: 1-4mm, slicing size: 1-8mm, and wave shaped potato chips can also be cut.

Safety certification: The equipment has passed CE certification, ISO9001 quality management system, patents and other certifications, and is popular in Europe, Europe, America, Asia, Southeast Asia and other countries.

Universality and durability

Material quality: 304 stainless steel structure is corrosion-resistant, heat-resistant, easy to clean, and meets food grade hygiene standards.

Multi material compatibility: Suitable for cutting various root vegetables such as potatoes, carrots, white radishes, ginger, etc. into shreds or slices.

Modular design: adopting a quick change cutter head design, easy to replace, and achieving multiple cutting specifications. A device can switch between various cutting forms such as slicing and shredding by replacing different blade heads. The cutterhead can be quickly disassembled for easy cleaning and maintenance.

Simplify the operational process

Machine one key start switch, safety emergency stop button. One person can operate one machine without the need for professional training or complex processes, and can directly achieve the operation of starting up and processing. Before cleaning or replacing the tool set, the power must be cut off.

Suitable for various processing industries

Food processing factory: used for pre cutting raw materials for deep processed products such as fruit and vegetable chips and dehydrated vegetables, as well as for mass production of frozen foods, canned foods, and seasonings.

Clean vegetable distribution center: Process purchased vegetables into standard forms such as silk and slices, and provide directly usable clean vegetable products for supermarkets or downstream customers.

Leisure and fruit and vegetable processing plant: used to process dried fruits and vegetables, pickles, Pickled vegetables and other leisure foods, or slice fruits for making fruit plates, fruit cans, etc.

Specialized Scenarios

Central Kitchen Catering Center: As the core cutting equipment, it processes root vegetables such as potatoes and radishes in batches and standardizes them into shreds and slices. The finished products are directly supplied to downstream chain stores, ensuring uniform dish specifications and significantly improving meal preparation efficiency.

University and large enterprise canteens: used to cope with the huge demand for food processing during peak dining hours. The equipment can quickly cut large quantities of vegetables, greatly reducing meal preparation time and solving the problems of slow manual cutting and mixing speed and inconsistent specifications.

Frequently Asked Questions

What is the problem of food breakage and roughness after cutting with a slicer?

If there is roughness, breakage, uneven thickness or excessive fragmentation of the cut surface. This is usually caused by blade passivation or improper installation. It is necessary to sharpen or replace the blade in a timely manner, and check whether the gap between the blade and the adjustment plate is uniform.

How to solve the problem of the rotor of the cutterhead not rotating or getting stuck during machine operation?

This problem is usually caused by foreign objects (such as stones, salt particles) in the material barrel or excessive material input leading to jamming. Before each use, it is necessary to check the material barrel and ensure that there are no hard impurities in the material.

Maintenance method:

Daily maintenance: After daily use, cut off the power supply, remove the cutterhead, clean the residue with water, and dry it to prevent salt containing materials from corroding the cutterhead.

Monthly maintenance:

All moving parts of mechanical components must be kept lubricated.

All chains, sprockets, gears, gear racks, and other rotating components should be regularly lubricated with oil or butter.

All axis rotation joints should be regularly lubricated with oil.

Check whether the motor and transmission system are running smoothly, and whether there are any abnormal noises or vibrations. Remove the cutting tools and apply oil for storage when not in use for a long time.

It is recommended to check the wear of the cutterhead and whether the fixing screws are loose every two weeks.

Safety Reminder

Do not open the cover or reach inside the machine during operation.

If there is a jamming, power off first and then handle it.
